COMMITTED TO PROVIDE A SAFETY &CONVENIENT AERIAL WORKING ENVIRONMENT

MPL-DC SERIES VERTICAL LIFT

LOW PLATFORM ENTRY ALLOWS EASY STEP IN & OUT.  SINGLE ELEVATING MAST IS MADE OF ALUMINUM ALLOY WITH DUAL-CHAIN DESIGN THAT ENSURE SMOOTH AND SAFETY OPERATIONS.  DC POWERED HYDRAULIC LIFTING UNIT GIVES MOST RELIABLE PERFORMANCE.  HANDY CONTROL SWITCH ON THE PLATFORM ALLOWS SINGLE PERSON OPERATIONS.TRAILER-MOUNTED OPTION AVAILABLE  ; (SEE PHOTO)

All TAMICO's Vertical Lift Comply With ANSI A92.3-1990 Standard & Safety Requirement

Click Here To Learn More About Product Features

Cat. No.

MPL-50DC

MPL-65DC

MPL-80DC

MPL-95DC

MPL-110DC

Max. Platform Height

5,000 mm

6,500 mm

8,000 mm

9,500 mm

11,000 mm

Max. Working Height

7,000 mm

8,500 mm

10,000 mm

11,500 mm

13,000 mm

Max. Load

160 kg

130 kg

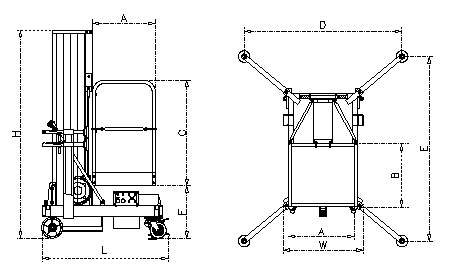

Ext.Width (D)

1,400 mm

1,500 mm

1,900 mm

2,200 mm

Ext. Length (E)

1,670 mm

1,755 mm

1,820 mm

2,225 mm

2,545 mm

Stowed Length (L)

1,200 mm

1,270 mm

1,280 mm

1,400 mm

Stowed Width (W)

760 mm

Stowed Height (H)

1,980 mm

2,080 mm

] Platform(A x B)

660 x 600 mm

Rail Height (C)

1,000 mm

Platform Entry (F)

500 mm

Power Source

DC 12V,100 Ah STORAGE BATTERY WITH PORTABLE CHARGER (PHOTO)

Weights (App.)

 295 kg

320 kg

340 kg

380 kg

 420 kg

CONTINUOUS IMPROVEMENT IS TAMICO'S COMPANY POLICY. PRODUCT SPECIFICATIONS ARE SUBJECTED TO CHANGE WITHOUT PRIOR NOTICE.  THE DRAWING IN THIS BROCHURE ARE FOR ILLUSTRATIVE PURPOSE ONLY.
